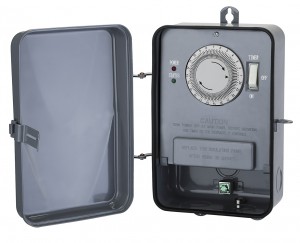

24 HR Multi-voltage Heavy Duty Mechanical Timer Series
SKU# & Specification:
| SKU# | Min, Time Interval | Box Type | Switch Rating |
| BND-60/U50A1 | 15 minutes | N-3R Steel enclosure | DPST |
| BND-60/U50A1-1 | 15 minutes | N-3R Steel enclosure | SPDT |
| BND-60/U50A2 | 15 minutes | N-3R Steel enclosure | DPST |
| BND-60/U50A2-1 | 15 minutes | N-3R Steel enclosure | SPDT |
| BND-60/U50A3 | 30 minutes | N-3R Steel enclosure | DPST |
| BND-60/U50A3-1 | 30 minutes | N-3R Steel enclosure | SPDT |
Technical Parameters:
120-240VAC, 60Hz, 40A Resistive
277VAC, 60Hz, 30A Resistive
14VAC, 30A Resistive,
120VAC, 1HP, 10A Ballast
208-240VAC, 2HP, 5A Ballast
277VAC, 1HP, 5A Ballast
120VAC, 8.3A Tungsten
208-277VAC, 5.4A Tungsten
120VAC, 800VA, Pilot Duty
208-277VAC, 720VA, Pilot Duty
TV-5
Function Brief:
Wire connection
24 or 48 ON/OFF per day (refer SKU SPEC)
With power and load indicator
With ON/OFF/Timing override switch
Min. Setting time: 15 or 30 minutes(refer SKU SPEC)
Max. setting time: 24 hours
